Application
The introduction of implementation :
Seamless (clean room) epoxy flooring
A doctor(Epoxy) seamless flooring which is formed with high quality epoxy resin, hardener and special agents, contains special feature that are dust free, seamless and easy to clean. It is suitable for G.M.P. flooring, warehouse, hospital, electrical factory and so on.

Properties :

Smooth, glossy, seamless, dust free, easy to clean and maintain
Working method:
  • (1) 1m/m primer coating(0.3 kg/m2), top coating(0.8 kg/m2)
  • (2) 3m/m primer coating(0.3 kg/m2), middle coating(1.6 kg/m2), silicon coating(2.0 kg/m2), top coating(0.8 kg/m2)
  • (3) 5m/m primer coating(0.3 kg/m2), middle coating(2.0 kg/m2), silicon coating(10.0 kg/m2), top coating(0.8 kg/m2)

Processing steps :

1.Plain floor treatment：
圖片替代文字

The surface should be clean off such as existing sealers, curing materials, grease, oil, and dirt.

2.Primer coating and operation：

Attention :
Use the solvent based for the concrete whose moisture content is below 8%; use the water based for the concrete whose moisture content is 8% to 16%.

圖片替代文字

  • Solvent based:After mixing 2055-50A/2055-50B(the mixing ratio is 2:1) evenly, brush or spread on the floor and leave it until dry before apply second layer.

  • Water based:Stirring water and 3118(hardener)(the mixing ratio is 1:1) evenly then mixing 1010 (the ratio is 1). Brush or spread on the floor and leave it until dry before apply second layer

3.Middle layer and operation
圖片替代文字

  • Resin floating method : Mixing 1030/2108-W (for winter), 1030/2108(for summer) or 1030/5340 (chemical resistance) evenly with the mixing ratio 2:1. Adding #9 silicon sand in it if needed. Smooth the surface and wait until dry before apply top coating.

  • Resin mortar method : Mixing 1010/2108 evenly with the mixing ratio 2:1. Adding 3~5 times #9 silicon sand in ti. Smooth the surfaces and wait until dry before apply top coating.

4.Top coating resin and operation：
圖片替代文字

  • Putty : If the surface is uneven, use 1351A/1351B(the mixing ratio 1:1) to create an even surface.

  • Top coating operating : Trowel epoxy resin(color can be changed) and hardener by the ratio 3:1 or 5:1; then wait until fully cured (3 days).

5.Other attentions：
  • The ground surface must be hard, smooth and non-peeling.
  • Store product in unopened container in a cool dry location.
  • Use the circle bucket to mix the materials.
  • 1351A/B is used to fill holes.
  • Apply on the wall first.
  • Wait one week for every layer to cure fully.
  • Use up the product within the suggested time.
  • Remove bubbles with brush.
  • Remove dust.

6.Product

  • Application Item number Mix ratio Color Pot Life
    (25℃/100g)min     Curing Conditions Viscosity
    (CPS/25℃)     Characteristics
  • Primer coating 2055-50A 100 2055-50B 50 Pale yellow 100mins. 8hrs 50~200 Solvent base, low viscosity,excellent permeation,adhesive to cement.
  • Middle Coating flow morta MP-3A 100 MP-3B 25 Selective colors 40mins 8-12hrs 3000-5000 High strength, good toughness, easy to implement.
  • Leveling paste 1351A 100 1351B 100 Pale white 30mins. 6hrs paste Good adhesion, non-sagging, to level ground.
  • Top coating-thin layer DE series 100 DEB 33 Selective colors 30mins. 8hrs 4500~6500 Solvent base, high anti-abrasion, excellent coverage.
  • Top coating-thick layer E series 100 6892-2B 33 Selective colors 30mins. 12hrs 4500~6500 Non-solvent, high abrasion resistance, high gloss and smooth.
  • Top coating transparent 5110A 100 5110B 50 Transparent 30mins. 12hrs 800~1200 Non-solvent, good chemical-resistance, no toxicity.
  • Acid and alkali resistance top coating 5140A 100 5140B 50 Transparent 30mins. 12hrs 600~1000 Non-solvent, acid and alkali resistance.
  • Electric conductive top coating ConductA 100 ConductB 33 Selective colors 40mins. 24hrs 500~700 Good conductivity, good chemical property.
  • Primer coating 3118BottomA 100 water 100 3118BottomB 100 Cream 50mins. 24hrs 2000~6000 Water-born base, moderate viscosity, excellent hydrophilic, adhere to cement.
  • Top Coating Water-born base type 3118 top A 100 3118 top B 20 Selective colors 60mins. 18-20hrs 600~1000 Water-born base coating, good hydrophilic.

(請向左右滑動)

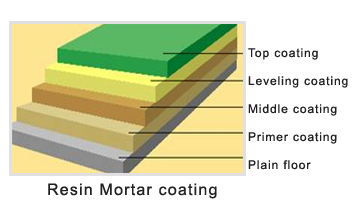

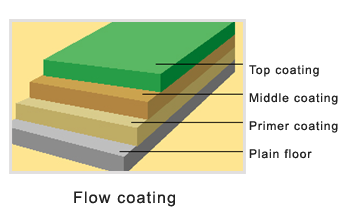

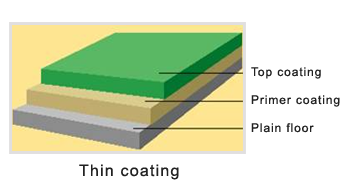

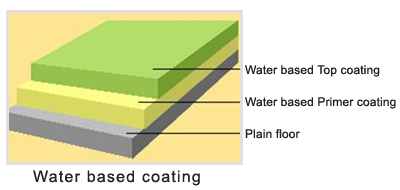

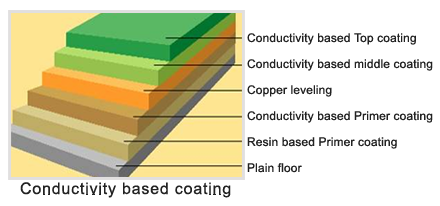

7.Picture of the cross section of flooring：
圖片替代文字
  • Test Item Unit Test method Result
  • Compression Strength kg/cm2 ASTM D695 850
  • Flexural Strength kg/cm2 ASTM D790 650
  • Tensile Strength kg/cm2 ASTM D638 350
  • Hardness shore D ASTM D2240 80
圖片替代文字
  • Test Item Unit Test method Result
  • Compression Strength kg/cm2 ASTM D695 900
  • Flexural Strength kg/cm2 ASTM D790 600
  • Tensile Strength kg/cm2 ASTM D638 350
  • Adhesive Strength kg/cm2 ASTM C190 120
  • Hardness shore D ASTM D2240 80
  • Water Absorption % RT24hrs 0.1
  • Abrasion Resistance g 1000RPM 1.3
圖片替代文字
  • Test Item Unit Test method Result
  • Compression Strength kg/cm2 ASTM D695 900
  • Flexural Strength kg/cm2 ASTM D790 600
  • Tensile Strength kg/cm2 ASTM D638 350
  • Adhesive Strength kg/cm2 ASTM C190 120
  • Hardness shore D ASTM D2240 80
  • Water Absorption % 25℃ 24 hr 0.1
  • Abrasion Resistance g 1000RPM 1.3
圖片替代文字
  • Test Item Unit Test method Result
  • Compression Strength kg/cm2 ASTM C109 350
  • Flexural Strength kg/cm2 ASTM C348 280
  • Tensile Strength kg/cm2 ASTM C190 120
圖片替代文字
  • Test Item Unit Test method Result
  • Compression Strength kg/cm2 ASTM D695 800
  • Abrasion Resistance mg JIS K-7204 63
  • Hardness Shore D JIS K-7215 80
  • Flexural Strength kg/cm2 JIS K-6911 360
  • Surface resistance Ω IEC 61340 104Ω ~ 106Ω
